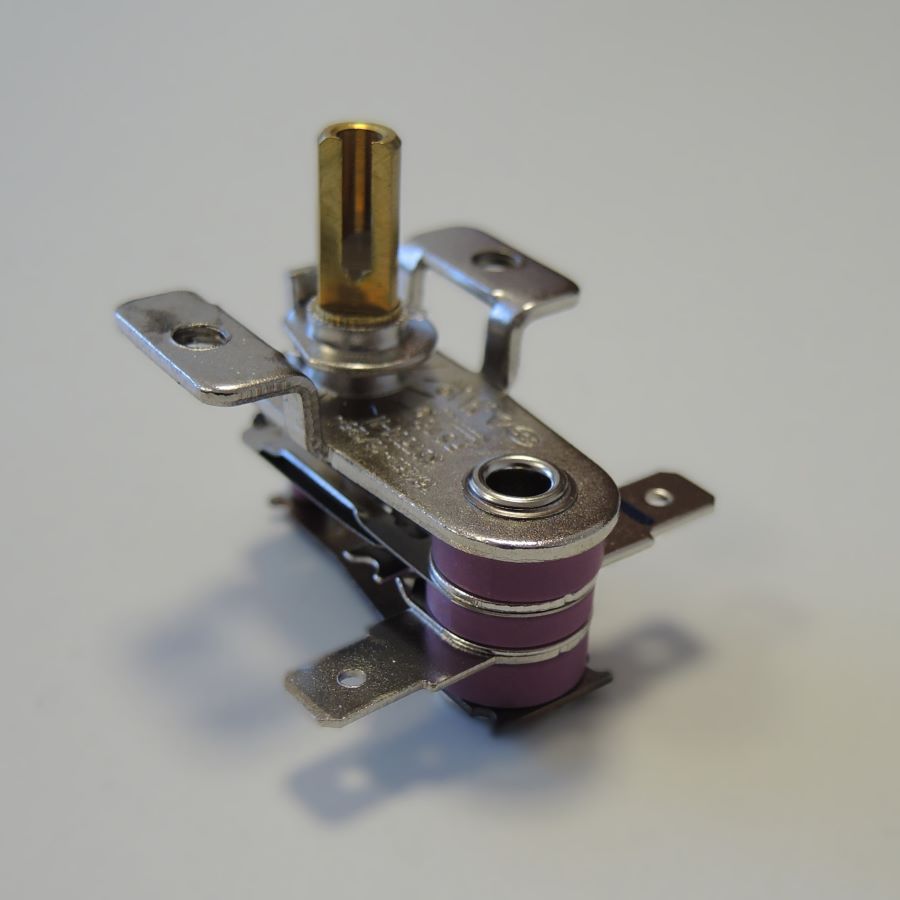

KST501 – bimetallic thermostat
Adjustable SPST bimetallic thermostats for temperature control, available with different intervention and differential calibration fields. The bimetallic foil inside, with a snap movement, changes its position when the set temperature is reached, causing the opening of the electrical contact. The main advantages are the instant opening/closing of the electrical contact which reduces sparking and therefore prolongs the life of the component itself and the reliability of the change of state of the bimetallic foil when the user's set temperature is reached.
Possible calibration ranges: starting from +0°C up to + 260°C
Main applications
Air conditioning, fan coils, air conveyors, oil radiators, dryers, fryers, ovens and any other application where temperature control is required.
Bimetallic thermostats Adjustable SPST for temperature control, available with different intervention and differential calibration fields. The bimetallic plate inside, with a snap movement, changes the position when the set temperature is reached, causing the opening of the electrical contact. The main advantages are the instant opening/closing of the electrical contact which reduces sparking and therefore prolongs the life of the component itself and the reliability of the change of state of the bimetallic foil when the user's set temperature is reached.
Possible calibration ranges: starting from +0°C up to + 260°C
Main applications
Air conditioning, fan coils, air conveyors, oil radiators, dryers, fryers, ovens and any other application where temperature control is required.
| Temperature range (min-max): | 0-260°C |
| Temp tolerance: | ±5°C |
| Differential: | from 2°C to 12°C |
| Gradient: | 0.1°C/minute |
| Max T ambient: | T90 |
| Knob rotation: | 300° |
| Contacts: | SPST |
| Contact range: | 10A @ 250VAC |
| Contact duration: | 30,000 cycles |
| Certification: | VDE, TUV, UL |
