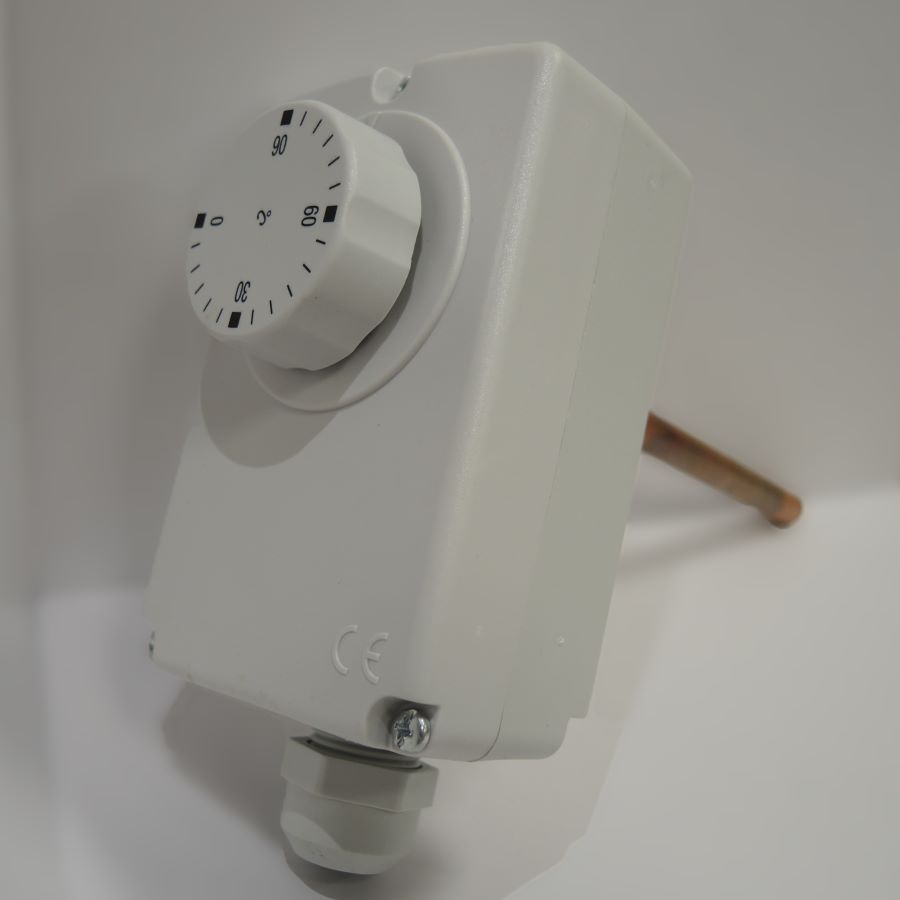

TPS1 – SPDT boxed single-pole adjustable capillary thermostat
Adjustable single-pole SPDT boxed immersion capillary thermostat complete with sheath.
These thermostats automatically open the circuit when the set temperature is reached; when the value of the differential drops, the circuit is closed again. In this way the temperature remains within the average of the value set with the adjustment knob.
Working range: from 0°C up to 210°C
Main applications
This thermostat, normally mounted with the sheath immersed on the hot water delivery pipes, is suitable for the automatic regulation of boilers, pumps and other devices.
SPDT unipolar adjustable capillary thermostat immersion box complete with sheath. These thermostats automatically open the circuit when the set temperature is reached; when the value of the differential drops, the circuit is closed again. In this way the temperature remains within the average of the value set with the adjustment knob.
Working range: from 0°C up to 210°C
Main applications
This thermostat, normally mounted with the sheath immersed on the hot water delivery pipes, is suitable for the automatic regulation of boilers, pumps and other devices.
| CODE | STEM | RANGE |
| TPS1-1000 | L= 100 mm Ø8 mm | 0 – 90°C |
| TPS1-2000 | L= 200 mm Ø8 mm | 0 – 90°C |
| TPS1-1001 | L= 100 mm Ø8 mm | 40 – 210°C |
| TPS1-2001 | L= 200 mm Ø8 mm | 40 – 210°C |
Technical data
| Contact range: | C-1 15(3)A @ 400 VAC C-2 2.5(0.6)A @ 400 VAC |
| Duration: | 100,000 cycles |
| Minimum current: | 200 But without gold contacts |
| Resistence: | >100 Mohms |
| Max temp. around the body: | T90 |
| Max temp. around the bulb: | +15% max value T working range |
| Dielectric strength: | AC 2000V 1 min |
| Connections: | faston 6.3×0.8 |
| Approvals: | ENEC03 internal thermostat |
| Degree of protection: | IP40 |
