TS1 – capillary box thermostat
SPDT unipolar capillary box thermostat for controlling room temperature and air conditioning/heating systems.

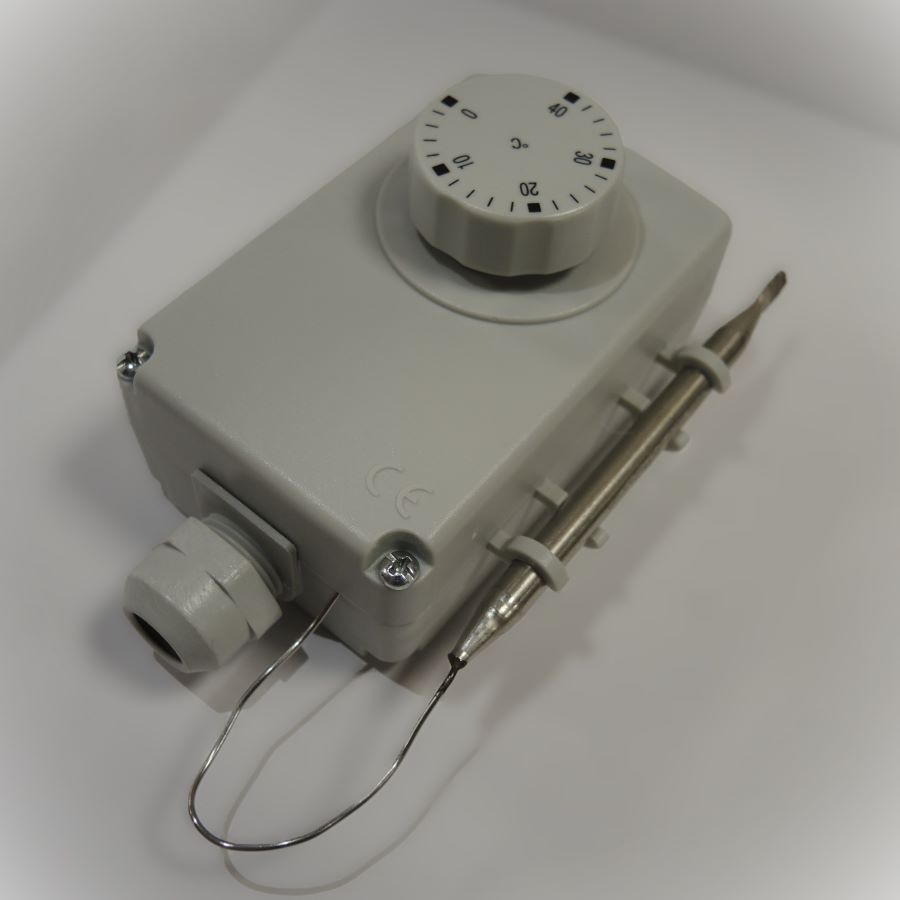

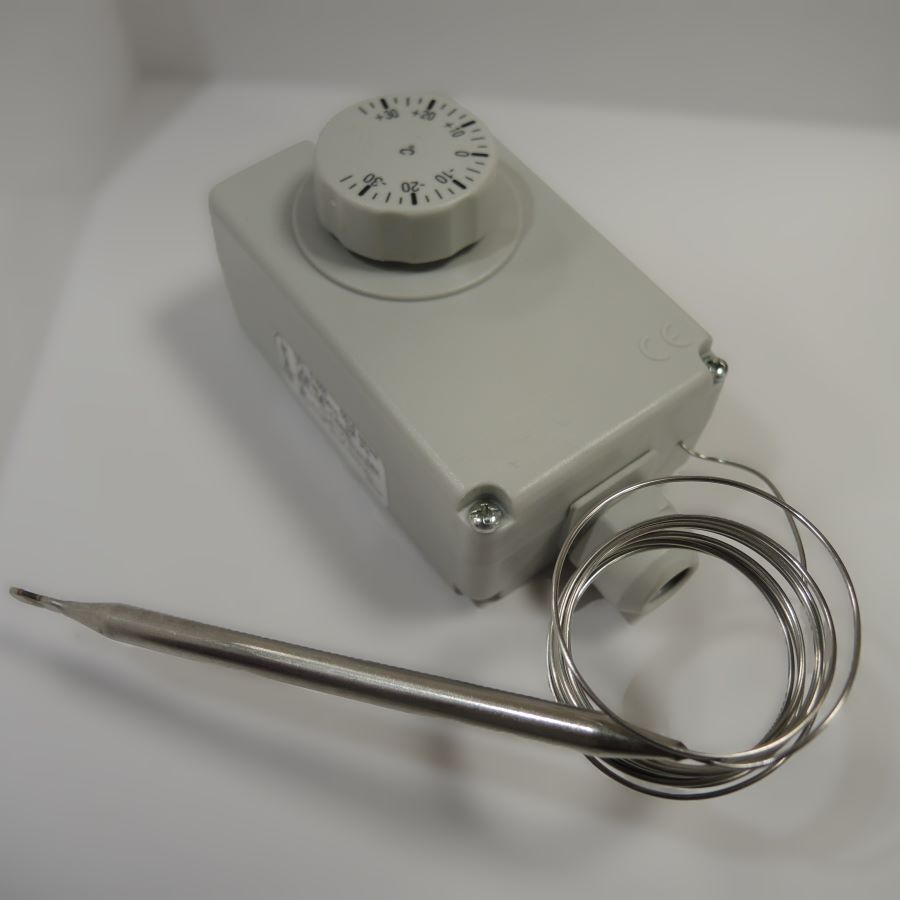

IP44 protection. Available with integrated or remote sensor. The thermostat automatically opens (hot version) or closes (cold version) the main contact when the remote bulb probe reaches the set value; subsequently, when the temperature drops by the differential value, it closes (hot version) or reopens (cold version) the contact. The controlled temperature is thus maintained within a minimum fluctuation. Possible calibration ranges: starting from -35°C up to +320°C.
Main applications
Air conditioning, cold rooms, saunas, greenhouses, industrial environments, boilers and any application where a wall-mounted temperature control or one that can be connected independently is required.
SPDT single-pole capillary box thermostat for controlling room temperature and air conditioning/heating systems. IP44 protection. Available with integrated or remote sensor. The thermostat automatically opens (hot version) or closes (cold version) the main contact when the remote bulb probe reaches the set value; subsequently, when the temperature drops by the differential value, it closes (hot version) or reopens (cold version) the contact. The controlled temperature is thus maintained within a minimum fluctuation. Possible calibration ranges: starting from -35°C up to +320°C.
Main applications
Air conditioning, cold rooms, saunas, greenhouses, industrial environments, boilers and any application where a wall-mounted temperature control or one that can be connected independently is required.
Technical features
| Contact range: | C-1 15(3)A @ 400 VAC C-2 2.5(0.6)A @ 400 VAC |
| Duration: | 100,000 cycles |
| Minimum current: | 200 But without gold contacts |
| Resistence: | >100 Mohms |
| Max temp. around the body: | T90 |
| Max temp. around the bulb: | +15% max value T working range |
| Dielectric strength: | AC 2000V 1 min |
| Connections: | faston 6.3×0.8 |
| Approvals: | ENEC03 internal thermostat |
| Degree of protection: | IP40 |
